| Material | 304 Stainless Steel, 316 Stainless Steel | Reflective Grade | DIAMOND GRADE |
| Protection Rating | IP68 | Water fillable | non-water fillable |
| Has Light | With Light | Color | Customized |
| Model Number | LB-101 | Diameter * Length | 219 mm |
| Brand Name | RICJ | Operating Temperature | -45°C to +75°C |
| Material | 304/316 stainless steel | MOQ | 10 PCS |
| Diameter | 219 mm (OEM: 168 mm, 273 mm) | Unit Operating Voltage | Supply voltage: 220V |
| Selling Units | Single item |
| Single gross weight | 98.000 kg |
| Single package size | 45X45X125 cm |

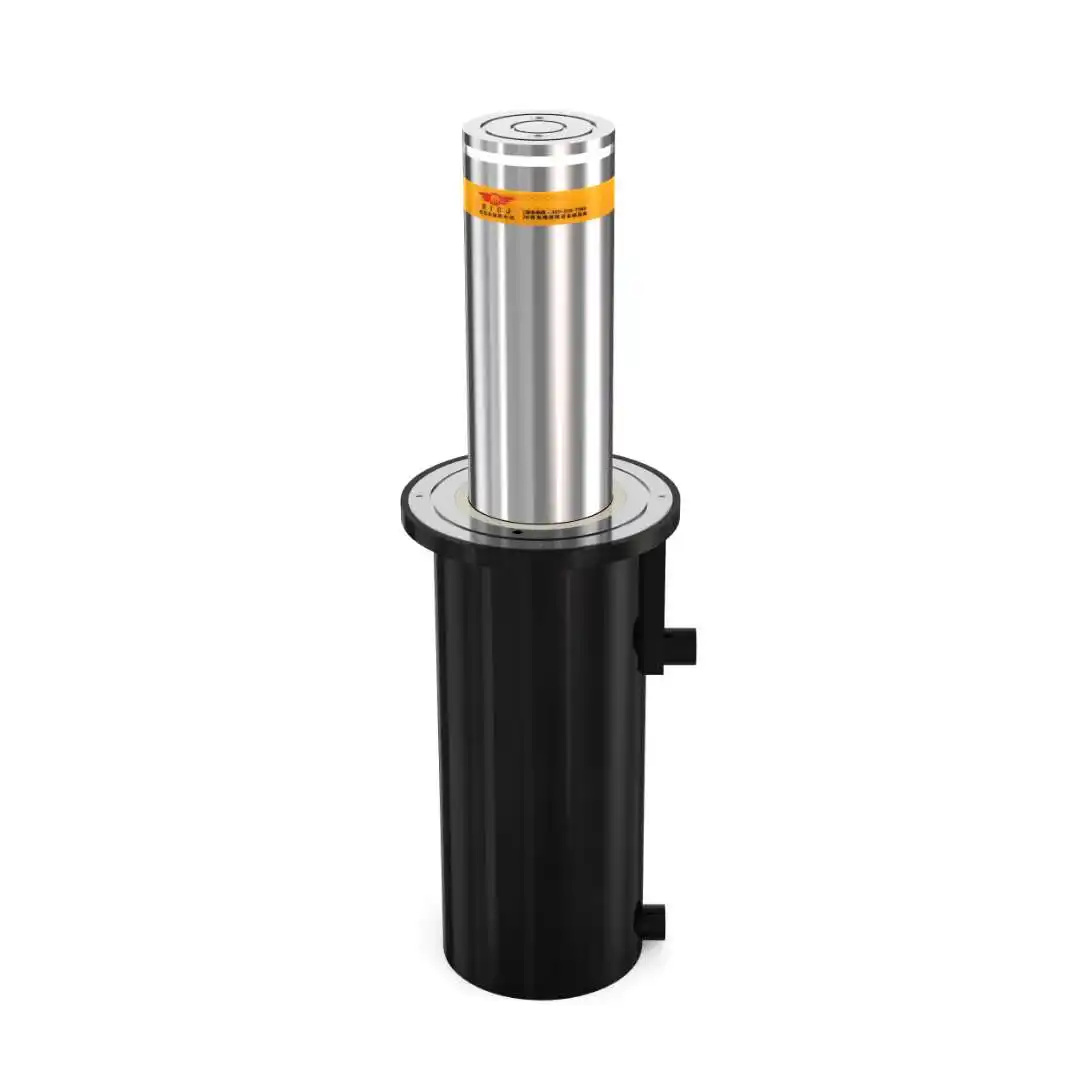

Engineered for ultimate reliability, RICJ’s IP68 K4/K12 crash-rated hydraulic bollards offer superior protection against both high-speed impacts and extreme weather. The IP68 certification ensures the drive system remains fully operational even under temporary submersion, making it ideal for flood-prone areas. Fully customizable in height and finish, it provides a high-security, all-weather barrier for critical infrastructure.

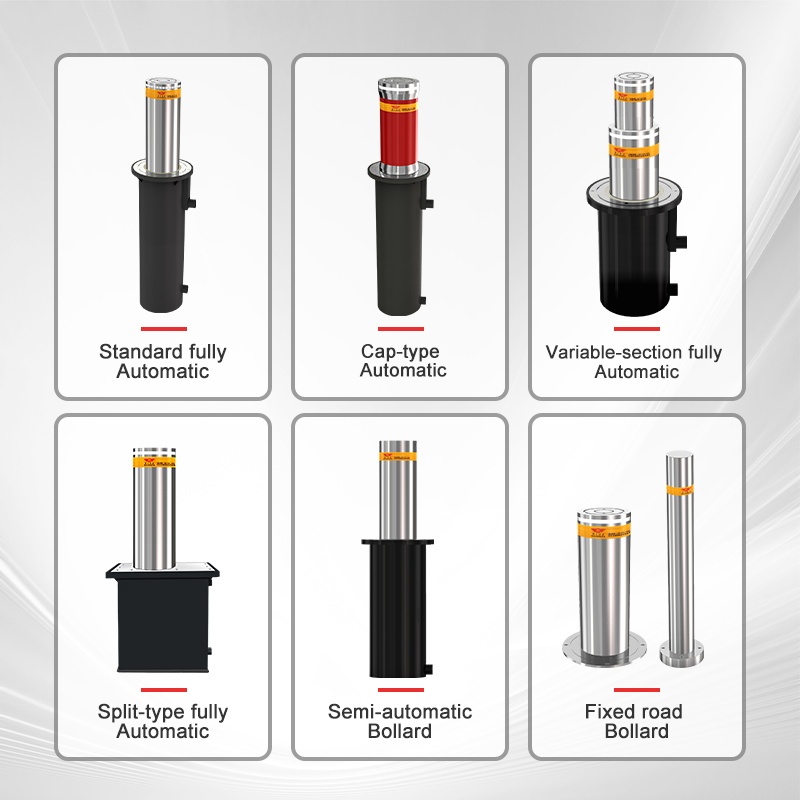

If your project requires reliable site management but has tighter budget constraints, we highly recommend our Stainless Steel Semi-Automatic Bollards or Manual Lockable Posts. These models offer excellent durability and visual deterrence at a lower cost, without the need for complex electrical installation.

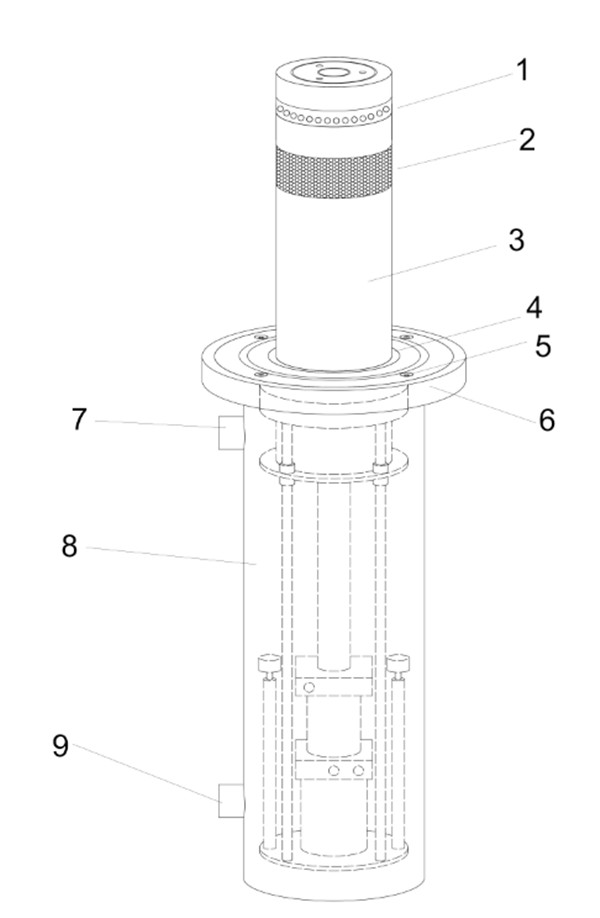

| Technical parameters of fully automatic hydraulic rising bollard (diameter 219 Wall thickness 6.0mm * 600mm high) | |||
|
No. |
Name |
Specification model |
The main technical parameters |
|
1 |
LED Light | Voltage: 12V/24V/220V |
|
|
2 |
3M Reflective tape | 1 pcs | Width (mm): 50Thickness (mm): 0.5Waterproof and dustproof |
|
3 |
Stainless steel rising bollards | SS 304 stainless steel | Diameter(mm)：219 |
| Wall thickness(mm)：6 | |||
| rising height(mm)：600 | |||
| The total length of bollard（mm）：750 | |||
| Surface treatment: stainless steel color, brushed and polished | |||
|
4 |
Rubber band | Material: rubber | Protect the stainless steel surface from friction damage when rising the bollards |
|
5 |
Screw | 4 pcs | Easy to disassemble the rising bollards |
|
6 |

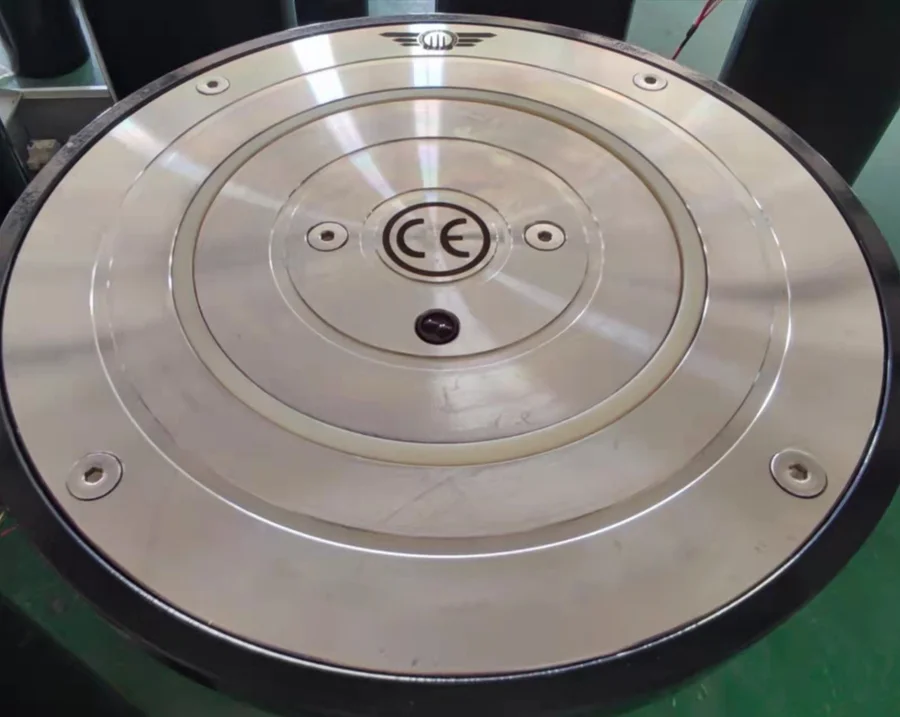

Bollard cover | SS 304 stainless steel | Diameter(mm)：400 |
| Thickness（mm)：10 | |||
| The whole machine shell is fully sealed design IP68 | |||
|
7 |
Embedded parts | Q235 Steel | Size（mm）：325*325*1110±30mmThe surface is hot-dip galvanized and sprayed, which can be used for more than 20 years |
|
8 |
Wiring tube | ||
|
9 |
Drain | ||
A: A crash rated hydraulic bollard is an automatic rising bollard driven by a hydraulic system designed to withstand vehicle impacts at specified K‑ratings (e.g., K4, K8, K12).

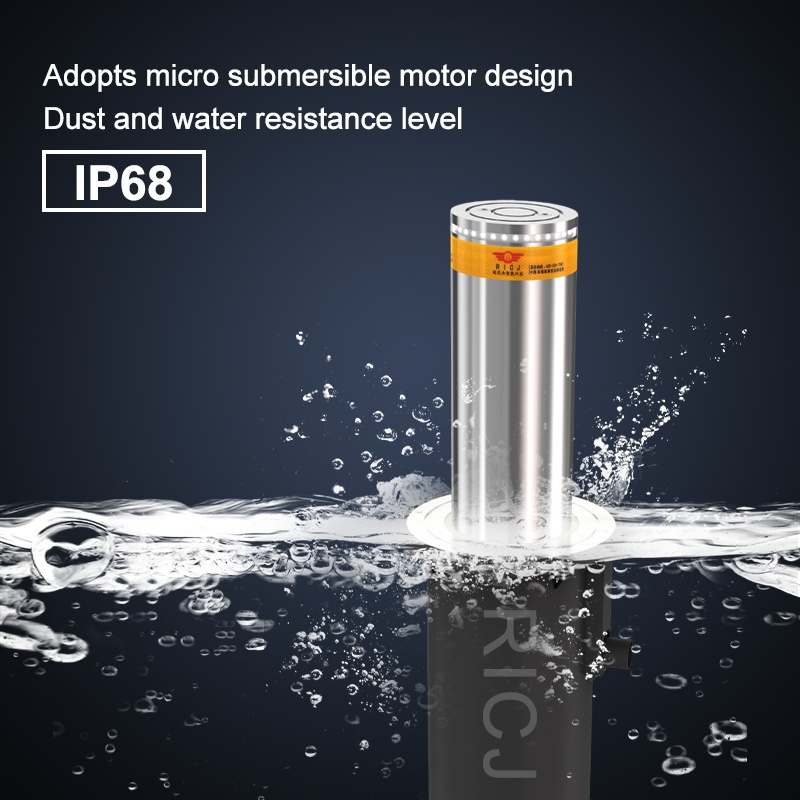

A: The IP68 rating ensures the bollard’s hydraulic system is fully protected against dust and prolonged water immersion, making it suitable for outdoor installations.
A: K12 rated bollards are used in high‑security environments such as airports, government facilities, and critical infrastructure where resistance to high‑speed vehicle impacts is required.
