15 years of experience, professional technology and intimate after-sales service.

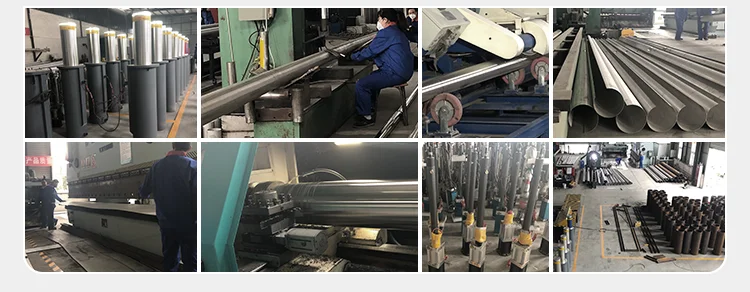

The factory area of 10000㎡+, to ensure punctual delivery.
Cooperated with more than 1,000 companies, serving projects in more than 50 countries.
| Feature | Specification |
| Material | High-Strength Stainless Steel |
| Control System | Hydraulic |
| System Power | 3.7 KW |
| Power Supply Voltage | 380V (Control Voltage 24V) |
| Elevation Height | 450mm – 800mm |
| Starting Time | ≤ 3 Seconds |
| Operating Temperature | -45°C to 65°C |
| Total Weight | 2200kg – 5500kg approx. |
| MOQ | 1 Piece |
| Place of Origin | Sichuan, China |
| Selling Unit | Single Item |
| Single Package Size | 1000 x 2000 x 500 cm |
| Single Gross Weight | 20.00 kg |
| Packaging Material | Reinforced Export Grade Crating |
|
Control system
|
Hydraulic (liquid crystal display, English, Russian, Turkish, Spanish,different language menu, the language is customized)
|
|
|
Power supply voltage
|
380V (control voltage 24V)
|
|
|
System Power
|
3.7KW
|
|
|
Pressure capacity
|
120 tons of container trucks
|
|
|
Anti-collision
|
K12 (equivalent to 120KM / hour impact, the car is blocked, the equipment works as usual)
|
|
|
Protection level
|
IP68 (dustproof, waterproof)
|
|
|
Open time
|
2~6S (adjustable)
|
|
|
Closing time
|
2~6S (adjustable)
|
|
|
Communication
|
RS485 ≤ 1200M
|
|
|
Degree of elevation
|
450mm-800mm
|
|
|
Working temperature
|
-45 ° C --- 75 ° C
|
|
|
Hydraulic pressure is adjustable, normal pressure should be adjusted below 50KGF, the maximum cannot exceed 70KGF.
Storage environment: -10 °C - 75 °C, rainproof, moisture proof and dustproof. |
||
