| Material | Stainless Steel | Place of Origin | Sichuan, China |
| Brand Name | Ricj | Power Supply Voltage | 380V (Control Voltage 24V) |
| System Power | 3.7KW | Pressure Capacity | More than 120 tons (Container Trucks) |
| Operating Temp. | -45°C - 65°C | Lifting Height | 450mm - 800mm |
| Starting Time | ≤ 3S | Weight | 2200kg - 5500kg approx |
| Control System | Hydraulic |
| Parameter | Specification |
| Selling Units | Single item |
| Single Package Size | 100 x 100 x 80 cm |
| Single Gross Weight | 68.000 kg |
|
Control system
|
Hydraulic (liquid crystal display, English, Russian, Turkish, Spanish,different language menu, the language is customized)
|
|
|
Power supply voltage
|
380V (control voltage 24V)
|
|
|
System Power
|
3.7KW
|
|
|
Pressure capacity
|
120 tons of container trucks
|
|
|
Anti-collision
|
K12 (equivalent to 120KM / hour impact, the car is blocked, the equipment works as usual)
|
|
|
Protection level
|
IP68 (dustproof, waterproof)
|
|
|
Open time
|
2~6S (adjustable)
|
|
|
Closing time
|
2~6S (adjustable)
|
|
|
Communication
|
RS485 ≤ 1200M
|
|
|
Degree of elevation
|
450mm-800mm
|
|
|
Working temperature
|
-45 ° C --- 75 ° C
|
|
|
Hydraulic pressure is adjustable, normal pressure should be adjusted below 50KGF, the maximum cannot exceed 70KGF.
Storage environment: -10 °C - 75 °C, rainproof, moisture proof and dustproof. |
||
|

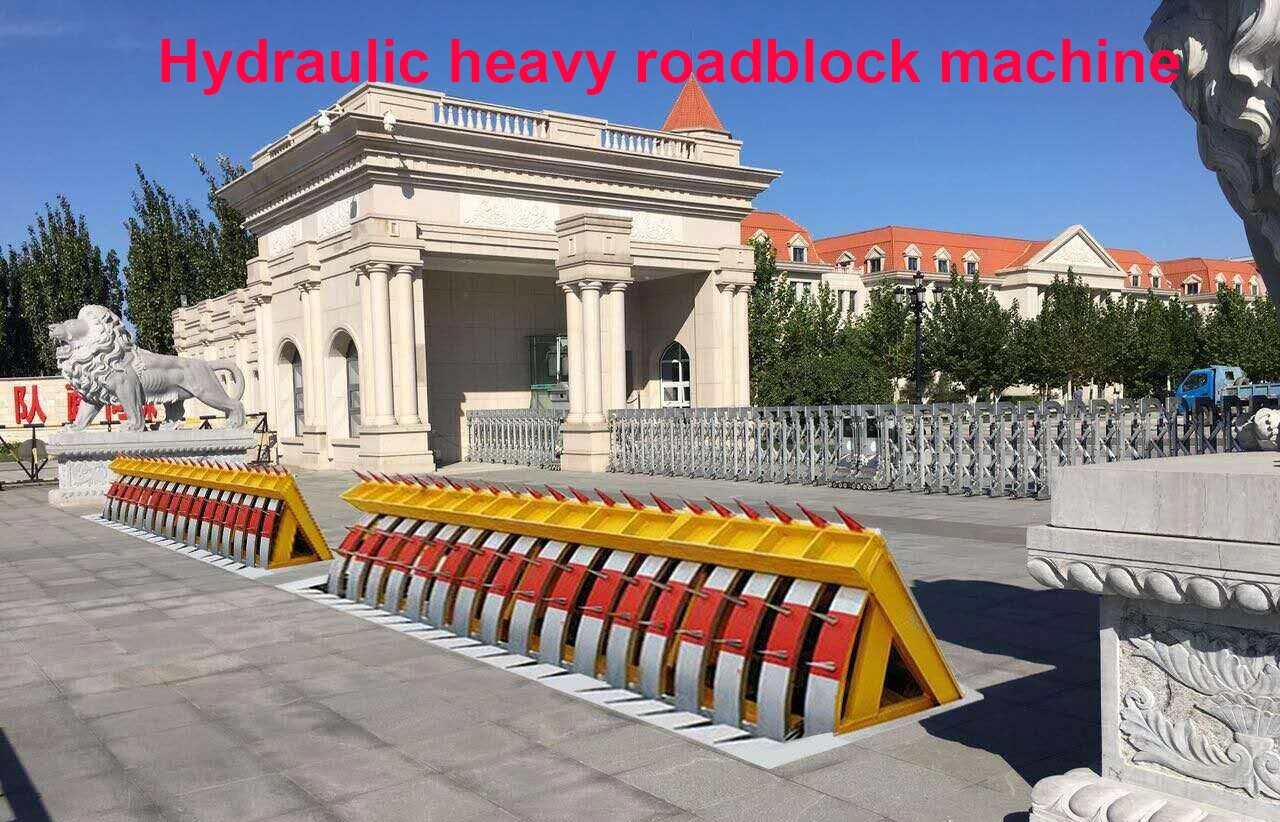

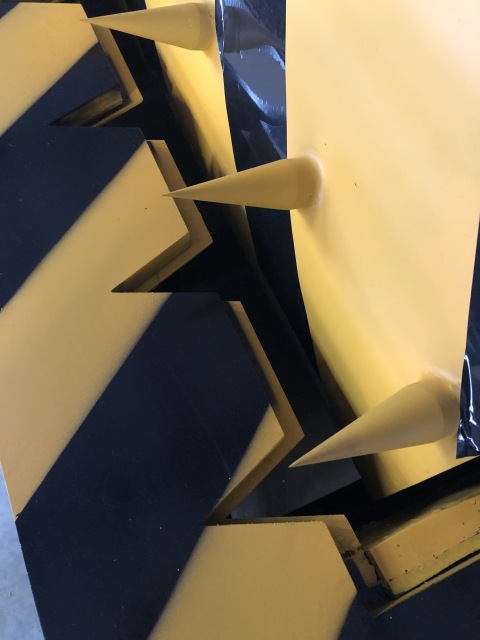

SPECIFICATIONS FOR HYDRAULIC ROADBLOCK MACHINE
|
||||||
|
Model
|
Dimensions
|
Flip height
|
Remark
|
|||
|
RB-101-3
|
L3000*W1050*H600mm
|
450-600mm
|
Size can be customized
|
|||
|
RB-101-4
|
L4000*W1050*H600mm
|
450-600mm
|
Size can be customized
|
|||
|
RB-101-5
|
L5000*W1050*H600mm
|
450-600mm
|
Size can be customized
|
|||
|
Thickness Customizable size: 20-30mm Increased customizable size: 400-800mm
|
||||||
