Whether you are securing a plaza in Dubai or a storefront in New York, the best bollard spacing depends on the use case.
For most commercial installations, the recommended center-to-center spacing is 1.0–1.5 meters (3.3–5 feet), with a minimum 915 mm (36 in) clear opening for ADA compliance.
Key data:
- Standard pedestrian/security spacing: 1.5 m (5 ft)
- ADA-required clear opening: 915 mm (36 in)
- High-security anti-ram spacing: 1.0–1.2 m (3.3–4 ft)
- Shared-bike/pedestrian spacing: 1.2 m (4 ft)
- Curb setback for storefront bollards: 0.5–0.6 m (20–24 in)

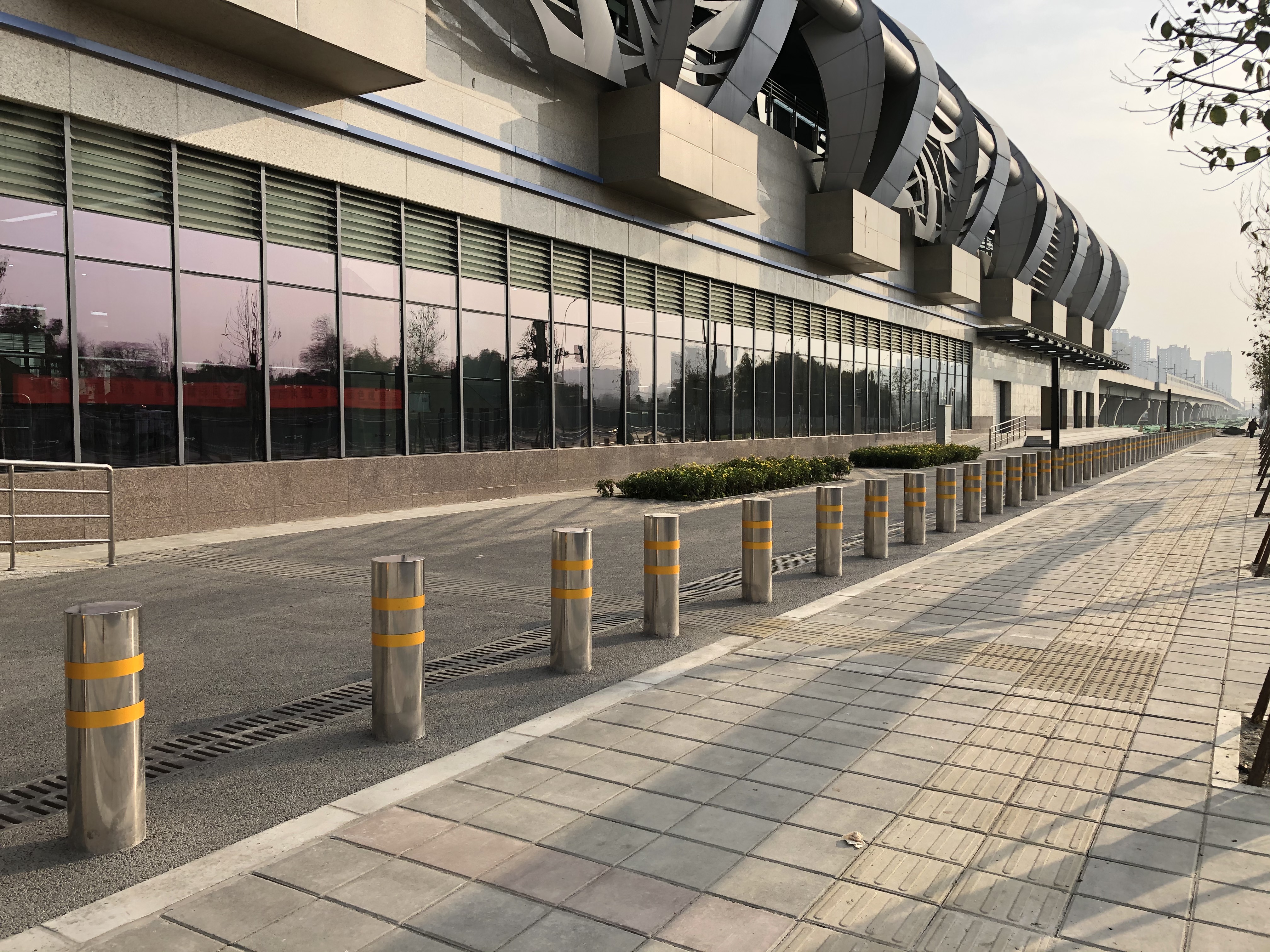

For most urban and commercial projects, the industry-standard distance between bollards is 1.5 meters (approx. 5 feet), measured from center to center.
This spacing is narrow enough to prevent passenger vehicles from passing through, yet wide enough to maintain a welcoming environment for pedestrians.
Clearance Space: This typically leaves a clear gap of about 0.9 to 1.2 meters (3 to 4 feet) between the bollard surfaces.
A professional security solution must not be a barrier for people with disabilities. Depending on your region, different laws apply:
North America (ADA): To be ADA compliant, you must ensure a minimum clear opening of 36 inches (915 mm).
Europe & UK: Standards like EN 17210 or Equality Act (Part M) often recommend a wider gap, typically between 1000 mm and 1200 mm, to accommodate larger motorized wheelchairs and strollers.
In high-threat environments where ram-raiding is a concern. The objective is to stop the vehicle's momentum entirely.
Bollards should be placed 1.0 to 1.2 meters (3.3 to 4 feet) apart, center-to-center.
Tighter spacing ensures that a vehicle cannot strike the gap at an angle and bypass the barrier. This is essential for crash-rated systems (K12/M50) protecting critical infrastructure.
To prevent crime, place bollards 1.5 meters (5 feet) apart and maintain a setback of 0.5 to 0.6 meters (2 feet) from the curb to avoid accidental damage caused by truck mirrors.
In areas where bicycles and pedestrians mix, spacing should be consistent. A gap of 1.2 meters (4 feet) is ideal to allow cargo bikes and strollers through while keeping cars out.
| Application | Center-to-Center (Metric) | Center-to-Center (Imperial) | Primary Goal |
| Standard Pedestrian | 1.5 Meters | 5 Feet | Accessibility & Basic Security |
| High Security/Anti-Ram | 1.0 - 1.2 Meters | 3.3 - 4 Feet | Total Vehicle Interdiction |
| ADA Compliant | 1.5 Meters | 5 Feet | Compliance (Min. 36" Clear Gap) |
| Utility/Asset Protection | 0.8 - 1.0 Meters | 2.5 - 3.3 Feet | Heavy Machinery Shielding |
International Spacing Guidelines
At RICJ, we provide more than just bollards. We provide engineered safety. Our team helps you calculate the exact bollard spacing required for your specific site, ensuring you meet local regulations while achieving maximum protection.
Global Compliance: Products designed for ADA, EU, and AU standards.
Custom Layouts: Full technical support for architects and contractors.
Integrated Systems: Combining fixed, removable, and automatic bollards for a seamless solution.
FAQ
Q: What is the recommended spacing between bollards?
A: Recommended spacing is generally 1.0–1.5 meters (3.3–5 feet), depending on whether the site prioritizes security, accessibility, or pedestrian flow.
Q: How wide should bollards be for ADA compliance?
A: For ADA compliance, leave at least 915 mm (36 inches) of clear opening between bollards.
Q: What spacing is best for anti-ram bollards?
A: Anti-ram installations normally use 1.0–1.2 meters (3.3–4 feet) center-to-center spacing for K12/M50-rated setups.
Q: Should bollards be set back from the curb?
A: Yes. For storefront protection, set bollards back 0.5–0.6 meters (20–24 inches) from the curb to reduce accidental impact.
